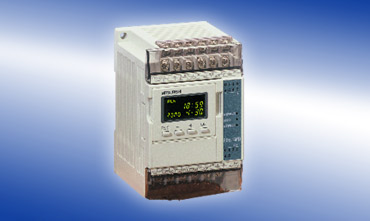

MITSUBISHI PLC MELSEC FX1S
The controllers of the FX1S series deliver outstanding functionality with up to 30 inputs and outputs in a very compact package. The FX1S is ideal for applications in difficult-to-access installations and systems where normal servicing is not possible. The integrated real-time clock and maintenance-free EEPROM with capacity for up to 2,000 program steps make the FX1S an autonomous and very service-friendly system.
FX1S series highlights:
- 10 to 30 inputs and outputs
- High processing speed (0.55µs per log. instruction)
- Ample program storage space and large device ranges · Integrated positioning controller
- Serial communications options (RS-232, RD-422, RS-485)
- Analog signal processing with optional expansion adapters
- Integrated real-time clock
- User-friendly programming with MS Windows-based programming software package or hand-held programming unit
- Expandable with adapters or display modules
Product range
| Type |
FX1S-10M |
FX1S-14M |
FX1S-20M |
FX1S-30M |
| Power supply |
100-240V AC / 24V DC |
| No. of inputs |
6 |
8 |
12 |
16 |
| No. of outputs |
4 |
6 |
8 |
14 |
| Digital outputs |
Relay / Transistor |
Program cycle period
per logical instruction |
0.55 - 0.7 µs |
| User memory |
2000 steps EEPROM (internal) |
| Dimensions in mm (WxHxD) |
60x90x75 |
60x90x75 |
75x90x75 |
100x90x75 | |

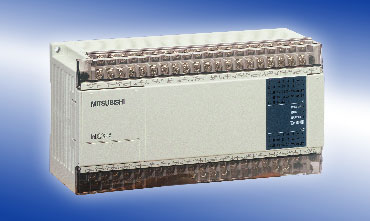

MITSUBISHI PLC MELSEC FX1N
The FX1N combines the benefits of an inexpensive compact controller with the flexible expansion capabilities of a modular control system. It can be expanded for up to 128 inputs and outputs and with a comprehensive range of special function modules.The FX1N also features a powerful integrated positioning controller.
The FX1N's communications and data link capabilities make it ideal for applications where the size of the controller hardware, communications features, special functions and processing speed are all critical.
FX1N series highlights:
- 14 to 128 inputs and outputs
- High processing speed (0.55µs per log. instruction)
- Ample program storage capacity (8,000 steps) and device ranges
- Integrated positioning controller
- Comprehensive range of special function and expansion modules for individual requirements
- Integrated PID controller
- Support for connection to open networks
- Integrated real-time clock
- User-friendly programming with MS Windows-based programming software package or hand-held programming unit
- Analog signal processing with optional expansion adapters
Product range
| Type |
FX1N-14 |
FX1N-24 |
FX1N-40 |
FX1N-60 |
| Power supply |
100-240 V AC/ 12-24 V DC |
| No. of inputs |
8 |
14 |
24 |
36 |
| No. of outputs |
6 |
10 |
16 |
24 |
| Digital outputs |
Relay / Transistor |
| Program cycle period per logical instruction |
0.55 -1 µs |
| User memory |
8.000 steps EEPROM (internal),
EEPROM/ EPROM cassettes (optional) |
| Dimensions in mm (WxHxD) |
90x90x75 |
90x90x75 |
175x90x75 |
185x90x75 | |

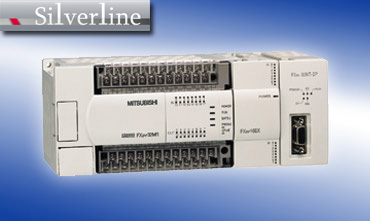

MITSUBISHI PLC MELSEC FX2N
The FX2N has set the standards in the industrial automation sector and is one of the biggest-selling controllers worldwide. It has many features normally found in larger controllers like floating-point math, the ability to process 32-bit data words and a wide range of fully-configurable communications options.
With a processing speed of just 0.08µs per logical instruction the FX2N is one of the fastest compact PLC systems available. It has extensive communications capabilities and a wide range of expansion and special function modules are available for configuration of precisely customised systems .
FX2N series highlights:
16 to 256 inputs and outputs
High processing speed (0.08µs per log. instruction)
Ample program storage capacity (8,000 steps, expandable to 16,000 steps) and device ranges
Can be expanded with up to eight special-function modules for analog signal processing, temperature data acquisition, communications and positioning applications with up to 16 axes
Connection options for Profibus-DP, CC-Link, DeviceNet and AS-Interface
User-friendly programming with MS Windows-based programming software package or hand-held programming unit
Integrated positioning controller
Product range
| Type |
FX2N-16 M |
FX2N-32 M |
FX2N-48 M |
FX2N-64 M |
FX2N-80 M |
FX2N-128 M |
| Power supply |
100-240V AC, 24V DC |
| Inputs |
8 |
16 |
24 |
32 |
40 |
64 |
| Outputs |
8 |
16 |
24 |
32 |
40 |
64 |
| Digital outputs |
Relay, Transistor |
Program cycle period
per logical instruction |
0.08µs |
| User memory |
8000 steps PLC-Program (RAM internal), optional 16 k RAM/EEPROM |
| Dimensions in mm (WxHxD) |
150x90x87 |
150x140x95 |
182x90x87 |
220x90x87 |
285x90x87 |
350x90x87 | |
