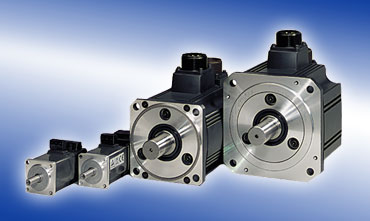

Servo/Motion – Servomotors

Highest Functionality



Utilising the most advanced concentrated winding techniques and latest technology, these brushless servo motors are among the most compact on the market.

Mitsubishi Servo Motors are made to high standards and offer a wide range of power, speed and inertia ratings providing a motor for all applications. Ranging from 50W through to 55kW and with specialist type motors available (flat "pancake"motors) the new Super Series Servo Motors complete the line-up of products offered by Mitsubishi Electric.

Also, all motors in the Mitsubishi Super Series are fitted with absolute encoders as standard.Therefore, an absolute system can be created by simply providing power to Servo amplifier via a battery. Once this has been done the super capacitor inside the motor and back-up battery allow the Servo motor position to be constantly monitored, even when disconnected from the system.

Product range

Type

Features

Application example

K

Type K
(0.16 ~ 2.4Nm)
Larger motor inertia moment makes this unit well suited for machines with fluctuating load inertia moment or machines with low rigidity such as conveyors.

  • LCD and conveyors
  • Food preparation machinery
  • Printers
  • Small loaders and unloaders
  • Small robots and component assembly devices
  • Small X-Y tables
  • Small press feeders

M

Type M
(0.16 ~ 2.4Nm)
Small motor inertia moment makes this unit well suited for high-frequency operation directly connected to ball screw components.
  • Inserters, mounters, bonders
  • Printed board hole openers
  • In-circuit testers
  • Label printers
  • Knitting and embroidery machinery
  • Ultra-small robots and robot tips

S

Type S
(2.4 ~ 33.4Nm)
Stable control is performed from low to high speeds, enabling this unit to handle a wide range of applications.
  • Conveyor machinery
  • Specialised machinery
  • Robots
  • Loaders and unloaders
  • Winders and tension devices
  • Turrets
  • X-Y tables
  • Test devices

R

ype R
(3.18 ~ 15.8Nm)
A compact sized low-inertia moment model with medium capacity. Well suited for high-frequency operation.
  • Roll feeders
  • Loaders and unloaders
  • High-frequency conveyor machinery




Servo/Motion

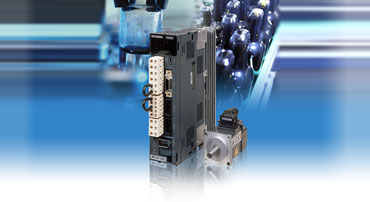

MELSERVO - Servo technology that does more



Mitsubishi Electric offers a variety of Servo and Motion system products providing solutions for applications as simple as a single axis point-to-point system through to fully synchonised 96 axis systems.

With both standard pulse type output modules and SSCNET bus modules specific application needs are easy to meet.

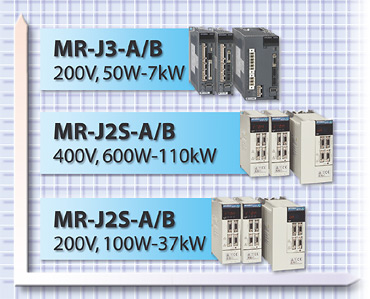

The Super Series of Servo motors and amplifiers takes Mitsubishi Motion Control to new levels of precision with a wide range of motors (all fitted with a standard 131,072 absolute encoder) and wide amplifier range (up to 55kW).

All Mitsubishi Servo and Motion system hardware is complimented by a range of software packages allowing easy programming and set-up of the units.
